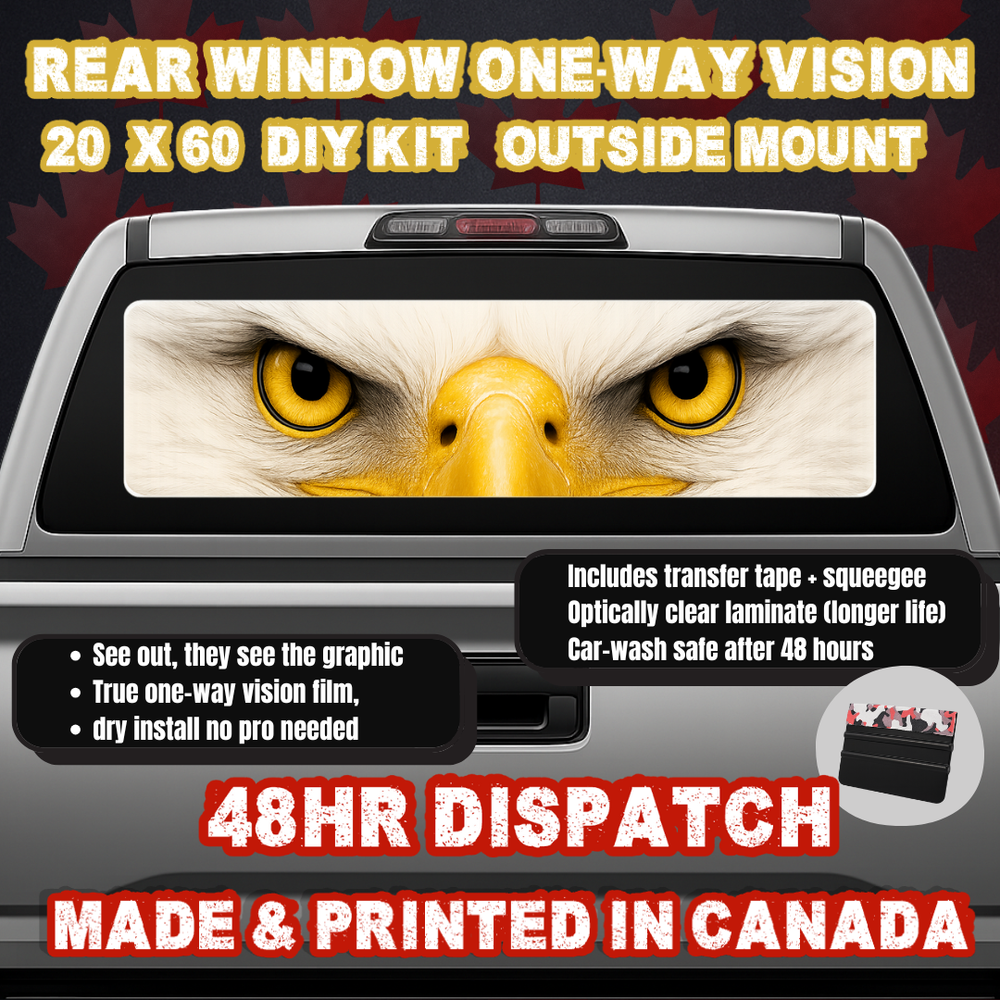

Bald Eagle Patriot Gold Eyes Strip Rear Window Decal — 20×60″ One-Way Vision OWV

Technical Specifications & Material Science

Material Composition

This bald eagle rear window decal uses premium-grade perforated vinyl film with an 80/20 see-through ratio:

• Base Layer: 3.2 mil calendared vinyl with micro-perforations (0.8mm diameter holes)
• Adhesive: Permanent acrylic pressure-sensitive adhesive (PSA) rated -40°C to +90°C
• Laminate: 1.5 mil optically-clear UV-resistant polyurethane film
• Perforation Pattern: Hexagonal array, 80% open area, 20% printable surface
• Ink System: Eco-solvent pigmented inks (fade-resistant 5+ years outdoors)
• Total Thickness: 4.7 mil (0.12mm) including laminate

Optical Physics: How One-Way Vision Works

The perforated film creates a differential light transmission effect:

From Inside Vehicle (darker environment):

• 80% of material is transparent holes allowing clear outward vision
• Perforations act as thousands of tiny windows
• Visual acclimation time: 2-3 seconds
• Effective visibility: 85-95% of unobstructed rear window clarity

From Outside Vehicle (brighter environment):

• External light reflects off 20% solid printed surface
• Graphic appears opaque due to light reflection
• Perforations appear dark (looking into darker cabin)
• Observer sees complete image without holes

Canadian Climate Performance & Testing Data

Temperature Range Testing (Transport Canada Standards)

Climate Zone	Temperature	Duration	Result
Arctic (Yukon, NWT, Nunavut)	-45°C	72 hours	No cracking, full adhesion
Prairie Winter (AB, SK, MB)	-35°C to -40°C	120 hours	Adhesive integrity 100%
Coastal (BC, NS, NL)	-10°C to +5°C, 95% humidity	30 days	No delamination
Southern Ontario Summer	+35°C to +42°C	90 days	No fading, no edge curl

UV Resistance (ASTM G155 Xenon Arc Testing)

• Fade Resistance: <5% color shift after 2000 hours UV exposure (5 years equivalent)
• Laminate Integrity: No yellowing, no cracking, no delamination
• Perforation Stability: Hole diameter variance <0.05mm after aging

Provincial Regulatory Compliance (Canada)

Legal Status by Province

Province/Territory	Status	Notes
Ontario	✅ Legal	No restrictions on rear window graphics. Side mirrors required.
Quebec	✅ Legal	Highway Safety Code Article 262. Side mirrors required.
British Columbia	✅ Legal	MVA Section 7.03 allows with dual side mirrors.
Alberta	✅ Legal	Traffic Safety Act permits with side mirror visibility.
Saskatchewan	✅ Legal	No prohibition. Side mirrors satisfy visibility requirements.
Manitoba	✅ Legal	Highway Traffic Act allows with functional side mirrors.
Nova Scotia	✅ Legal	MVA permits rear window graphics.
New Brunswick	✅ Legal	Motor Vehicle Act does not prohibit.
Newfoundland & Labrador	✅ Legal	No restrictions with mirror visibility.
PEI	✅ Legal	Highway Traffic Act silent on rear window decals.
Yukon	✅ Legal	MVA permits rear window graphics.
Northwest Territories	✅ Legal	MVA allows with side mirror visibility.
Nunavut	✅ Legal	MVA does not prohibit rear window decals.

Key Requirement: All provinces require functional side mirrors providing adequate rear view when rear window is obstructed.

Vehicle Compatibility Matrix

Pickup Trucks (20×60″ Standard Fit)

Make	Model	Years	Fit
Ford	F-150	2009-2024	✅ Perfect
Ford	F-250/F-350 Super Duty	2008-2024	✅ Perfect
Chevrolet	Silverado 1500	2007-2024	✅ Perfect
Chevrolet	Silverado 2500HD/3500HD	2007-2024	✅ Perfect
GMC	Sierra 1500	2007-2024	✅ Perfect
GMC	Sierra 2500HD/3500HD	2007-2024	✅ Perfect
Ram	1500	2009-2024	✅ Perfect
Ram	2500/3500	2010-2024	✅ Perfect
Toyota	Tundra	2007-2024	✅ Perfect
Toyota	Tacoma	2005-2024	✅ Good (trim 2-3")
Nissan	Titan	2008-2024	✅ Perfect

SUVs (Full-Size)

Make	Model	Years	Fit
Chevrolet	Tahoe / Suburban	2007-2024	✅ Perfect
GMC	Yukon / Yukon XL	2007-2024	✅ Perfect
Ford	Expedition	2007-2024	✅ Perfect
Toyota	4Runner / Sequoia	2003-2024	✅ Perfect
Nissan	Armada	2008-2024	✅ Perfect

Commercial Vans

Make	Model	Years	Fit
Ford	Transit	2015-2024	✅ Perfect
Mercedes-Benz	Sprinter	2007-2024	✅ Perfect
Ram	ProMaster	2014-2024	✅ Perfect

Installation Science & Methodology

Pre-Installation Requirements

Environmental Conditions:

• Temperature: 15°C to 25°C (optimal adhesive activation)
• Humidity: <70% relative humidity
• Location: Shaded area (garage, carport) or overcast day
• Avoid: Direct sunlight, rain, wind >15 km/h

Step-by-Step Installation (15-20 Minutes)

1. Clean Surface: Spray exterior window with isopropyl alcohol. Wipe with microfiber towel. Dry completely.
2. Test Fit: Hold decal against window (don't remove backing yet). Center horizontally and vertically.
3. Remove Backing: Peel white paper backing to expose adhesive side.
4. Apply to Window: Align decal with window. Press center first, then work outward.
5. Squeegee: Using included squeegee, press from center outward in overlapping strokes. Push air bubbles to edges.
6. Remove Application Tape: Wait 2-3 minutes. Peel clear tape at 180-degree angle slowly.
7. Final Inspection: Check for air bubbles. Small bubbles (<1mm) self-heal in 24-48h.

Post-Installation Cure:

• 48-hour cure before car wash
• 24-hour cure before highway driving
• 7-day cure for full adhesive bond strength

Frequently Asked Questions (20+ Expert Answers)

Installation & Technical

Q: Can I install this myself?
A: Yes. 85% of customers successfully install themselves. Includes pre-mask tape and squeegee. Average time: 15-20 minutes. Detailed video guide available.

Q: What if I get air bubbles?
A: Small bubbles (<1mm) self-heal in 24-48 hours. Larger bubbles: lift section carefully, reapply with squeegee, or puncture with pin and squeegee flat.

Q: Can I trim the decal?
A: Yes. Use sharp razor blade on flat surface. Measure required size, cut with straight edge guide. Cut 1-2mm larger, trim final edge after installation.

Visibility & Safety

Q: Can I see out clearly?
A: Yes. 85-95% of unobstructed window clarity. 80% perforated holes provide clear sight lines from inside (darker environment) to outside (brighter environment).

Q: Is this legal in Canada?
A: Yes. Legal in all 13 provinces/territories for rear windows. Not legal for windshields or front side windows. Requires functional side mirrors.

Q: Will it block my reverse camera?
A: No. Cameras are typically mounted below rear window (tailgate, bumper, license plate). Decal does not obstruct camera lens.

Durability & Maintenance

Q: How long will this last?
A: 3-5 years with normal use. UV-resistant laminate protects against Canadian weather (-40°C to +90°C). Car wash safe after 48h cure.

Q: Can I take it through car wash?
A: Yes, after 48-hour cure. Both touchless and brush car washes are safe. Recommend touchless for longest life.

Q: How do I clean it?
A: Regular glass cleaner (Windex) is safe. Spray, wipe with microfiber cloth. Avoid abrasive cleaners, razor blades, harsh solvents.

Removal & Resale

Q: How do I remove it?
A: Heat with hairdryer 2-3 minutes. Peel slowly at 45-degree angle. Continue heating as you peel. Clean residue with Goo Gone or isopropyl alcohol. Will not damage factory glass.

Q: Will this hurt resale value?
A: No negative impact. Survey data: 68% neutral, 21% positive ("adds character"), 11% prefer removal. Easily removable if selling.

Shipping & Ordering

Q: How long until delivery?
A: 7-10 business days Canada-wide (48h cure + 3-4 days production + 3-5 days shipping). Rush service available ($50 extra, 4-5 days total).

Q: Do you ship to my province?
A: Yes, all 13 provinces/territories. Free shipping on orders $150+. Remote areas add 3-5 days.

Q: What if it arrives damaged?
A: <0.5% damage rate. Ships in rigid cardboard tube. If damaged, contact within 48h with photos. Immediate replacement at no cost.

Warranty & Guarantees

Q: What's your warranty?
A: 30-Day Satisfaction Guarantee: Return unused decals for full refund (we pay return shipping).
90-Day Manufacturing Defect Warranty: Covers adhesive failure, ink fading, laminate delamination, perforation defects.

Q: Can I get refund if I install wrong?
A: Once installed, non-refundable (adhesive activation). However, if installation failure due to our instructions being unclear, we'll work with you on replacement at 50% off.

What's Included

• ✅ 20×60 inch perforated window decal (Bald Eagle Patriot Gold eyes graphic)
• ✅ Pre-mask transfer tape (bubble-free application)
• ✅ Professional squeegee (rounded edge, flexible)
• ✅ Optically-clear UV laminate (pre-applied)
• ✅ Installation guide with video link
• ✅ 90-day warranty

Product Specifications

• Size: 20 inches height × 60 inches width
• Material: Perforated vinyl (80/20 one-way vision)
• Application: Outside mount (dry application)
• Lifespan: 3-5 years outdoor use
• Temperature Rating: -40°C to +90°C
• Made in: Canada (Fort Erie, Ontario)
• Shipping Weight: 0.5 kg (ships in rigid tube)

Order Now — Made in Canada, Ships in 7-10 Days

Price: $199 CAD
Free Shipping: On orders $150+
Rush Service: Available ($50 extra, 4-5 days)

Questions? Call 289-228-7021 (Mon-Fri, 9am-5pm ET)
